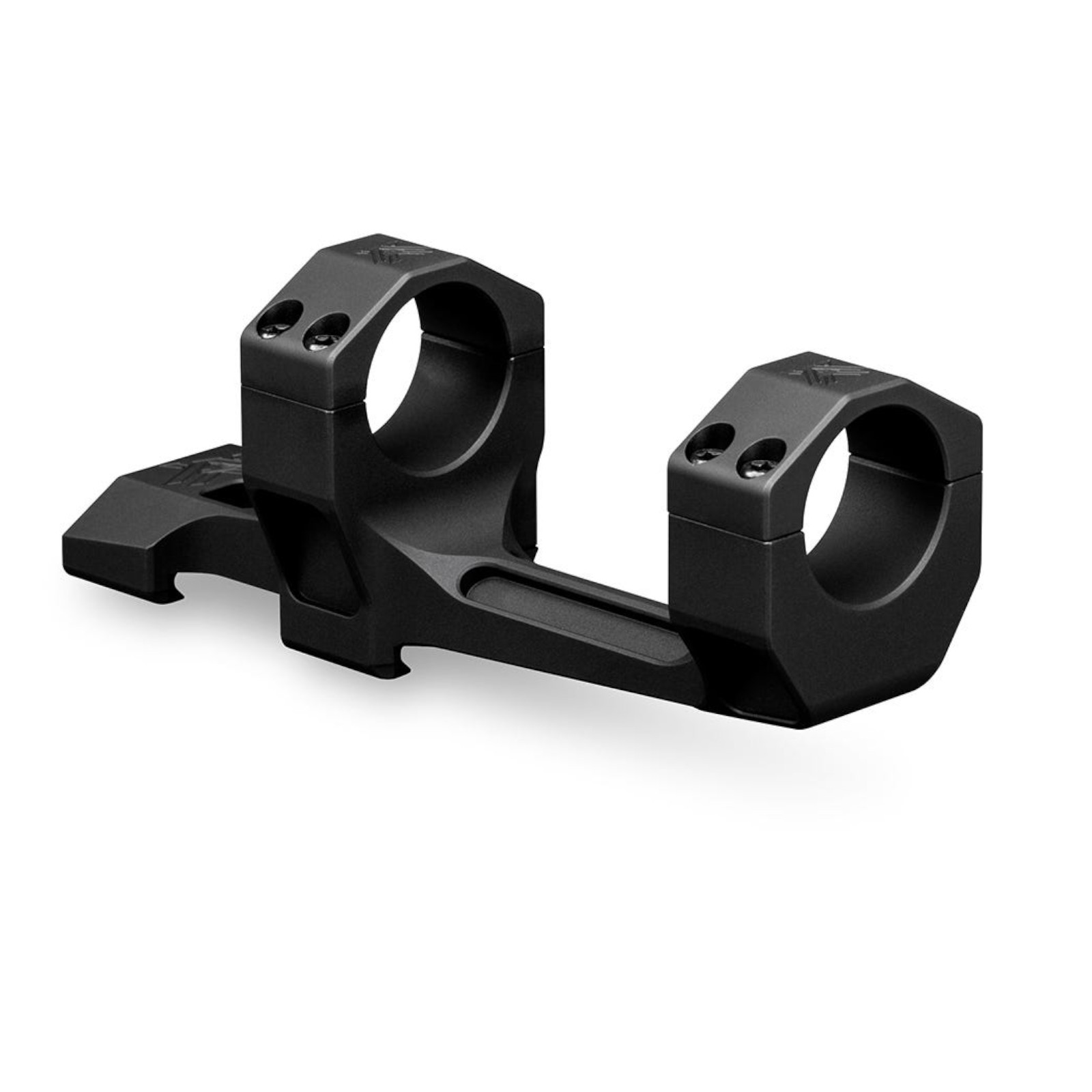

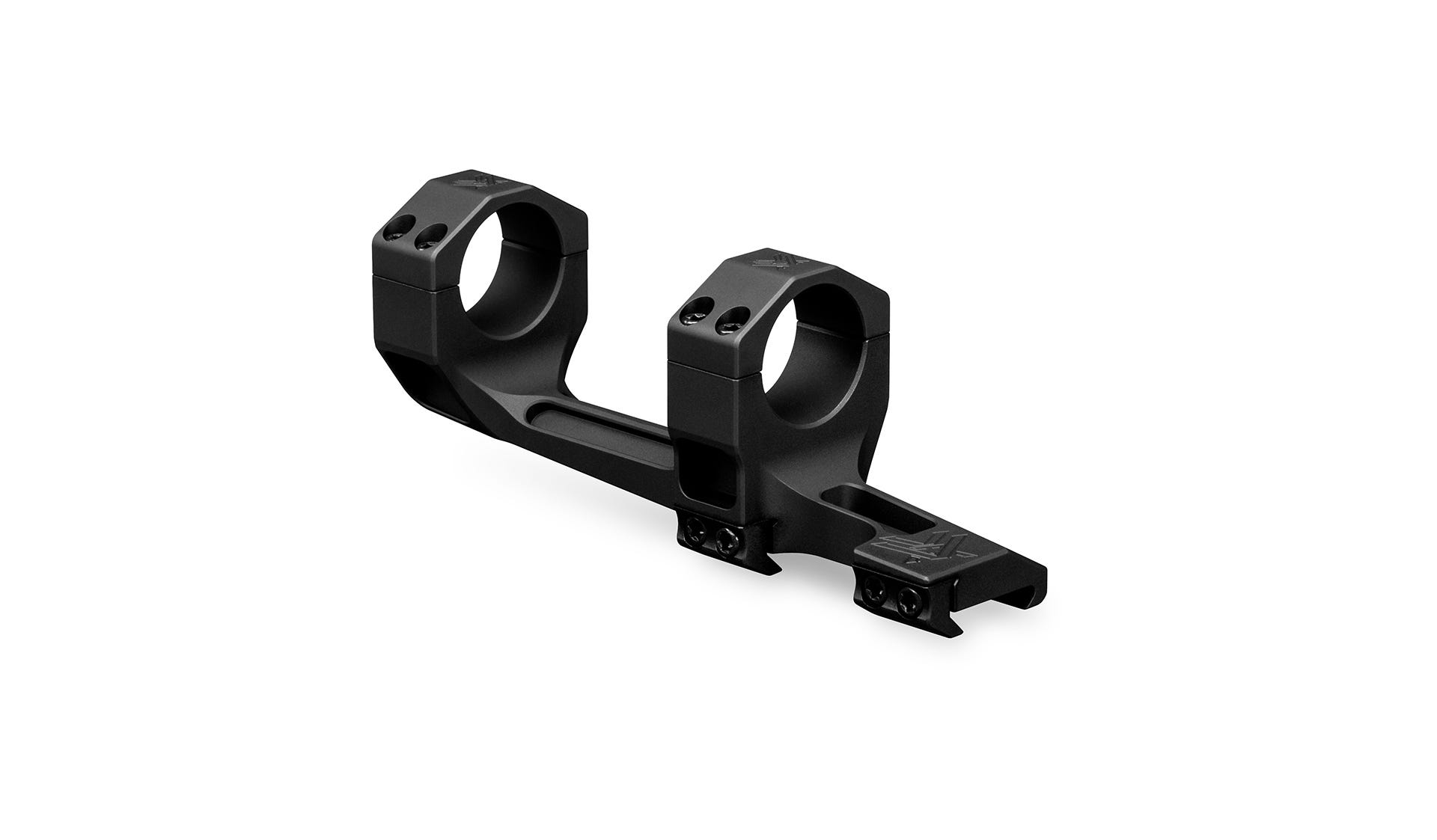

CM-534-20 Vortex Optics Precision Extended Cantilever Mount 34 MM 20 MOA
Available in several different sizes with options for 20 MOA cant. These extended cantilevers are designed for mounting scopes with a forward location, providing correct eye relief and head placement. The cantilever ring mount positions the center of the riflescope tube at a height of 1.574 (40mm) from the base.
Torque Specs:
| Base Clamp Screws | 45-50 in/lbs |
| Ring Screws | 18 in/lbs |
Specifications:
| Weight (per ring) | 197 grams (6.94 oz) |
